Creating a Delayed Input Directive in Angular

Demo and source code
Introduction
Generating the directive
Adding functionality
Usage example
Further reading
Special thanks

Demo and source code

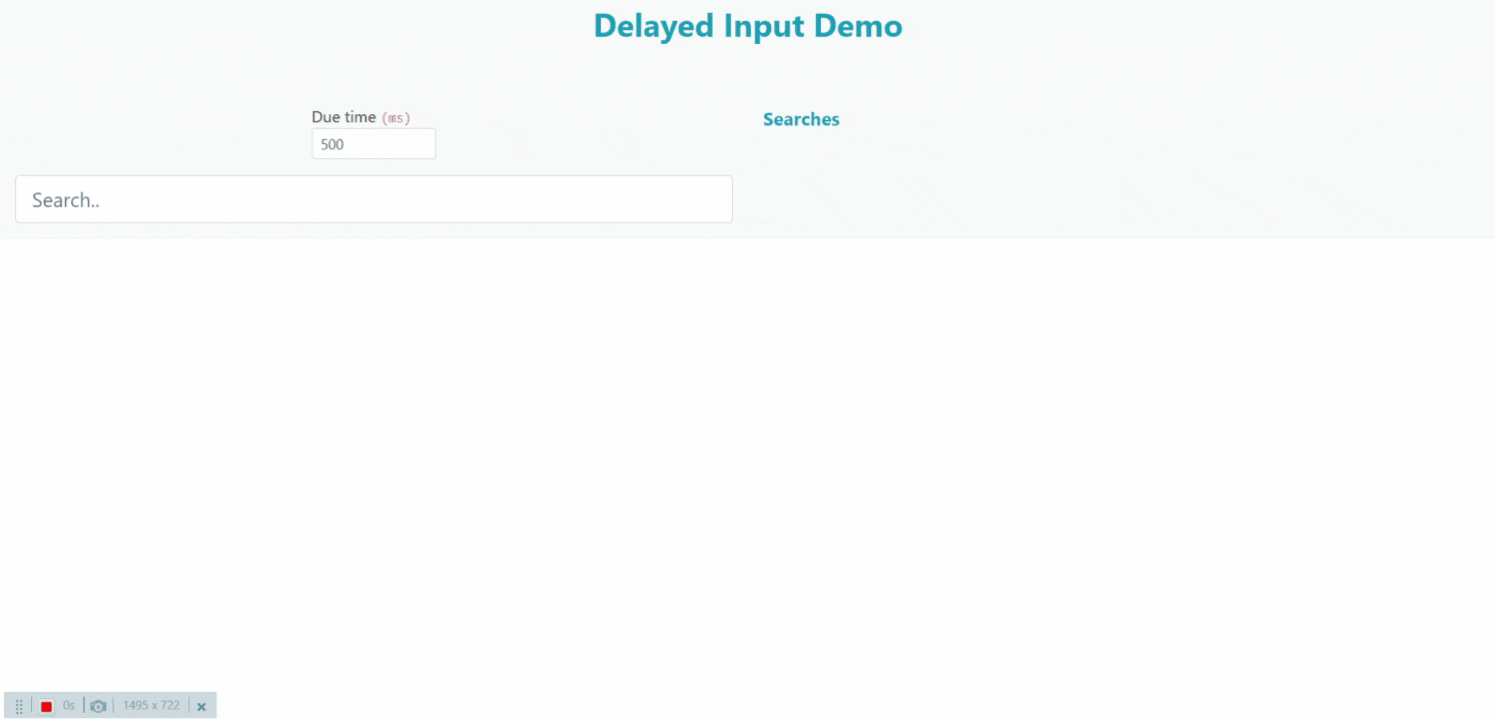

Here’s a link to the demo, and source code on Github.

Introduction

Imagine in your app there’s a search input that triggers an http request on each keystroke as a user types in their query. As your userbase grows, search operations quickly become expensive due to the increased traffic to your server.

To mitigate this, a directive can be created to enable us to emit a value from the search input only after a particular time span has passed without another keystroke from the user. It will delay new keystrokes but drop previous pending delayed keystrokes if a new one arrives from the search input. Let’s dig in!

Generating the directive

We start by creating a new Angular project with the command:

ng new delayed-input-demo

Then create a module we’ll register the directive in:

ng g module delayed-input

After which we create and register the directive inside the above module with the command:

ng generate directive delayed-input/delayed-input --export=true

We’ve used the --export=true CLI option so the directive is automatically added to the exports array of DelayedInputModule, which should now look like this:

import { NgModule } from '@angular/core';
import { CommonModule } from '@angular/common';
import { DelayedInputDirective } from './delayed-input.directive';


@NgModule({
  declarations: [DelayedInputDirective],
  imports: [
    CommonModule
  ],
  exports: [DelayedInputDirective]
})
export class DelayedInputModule { }

Adding functionality

Now let’s flesh out the directive, delayed-input.directive.ts, as below. Notice I’ve added numbered comments to important code lines which we’ll be reviewing.

import {Directive, ElementRef, EventEmitter, Input,
        OnDestroy, OnInit, Output} from '@angular/core';
import {fromEvent, Subject, timer} from 'rxjs';
import {debounce, distinctUntilChanged, takeUntil} from 'rxjs/operators';

@Directive({
  selector: '[appDelayedInput]'
})
export class DelayedInputDirective implements OnInit, OnDestroy {

  private destroy$ = new Subject<void>(); // 0️⃣

  @Input() delayTime = 500; // 1️⃣
  @Output() delayedInput = new EventEmitter<Event>();  // 2️⃣

  constructor(private elementRef: ElementRef<HTMLInputElement>) { // 3️⃣
  }

  ngOnInit() {
    fromEvent(this.elementRef.nativeElement, 'input') // 4️⃣
      .pipe(
        debounce(() => timer(this.delayTime)),  // 5️⃣
        distinctUntilChanged(
          null,
          (event: Event) => (event.target as HTMLInputElement).value
        ), // 6️⃣
        takeUntil(this.destroy$), // 7️⃣
      )
      .subscribe(e => this.delayedInput.emit(e)); // 8️⃣
  }

  ngOnDestroy() {
    this.destroy$.next(); // 9️⃣
  }

}

0️⃣: We declare and initialize destroy$ as an RxJS Subject. Used with the takeUntil operator, it will help us unsubscribe from RxJS subscriptions when the directive is destroyed.
1️⃣: We declare delayTime and set it’s value to 500 milliseconds. It represents the timeout duration in milliseconds for the window of time required to wait for emission silence before emitting the most recent source (userInput$) value. We’ll use this together with RxJS’s debounce and timer operators to only emit a value from userInput$ after 500 ms has passed without another emission from the subject. Notice we’ve decorated delayTime with @Input() so that a different value can be passed in when applying the directive.
2️⃣: We declare delayedInput, decorate it with @Output(), and make it an EventEmitter. We’ll use it push out a stream of delayed user inputs.
3️⃣: We get a reference to the host HTMLInputElement via constructor injection.
4️⃣: Using the fromEvent RxJS operator, we listen for input events on the directive’s host element (an HTMLInputElement). We access to the host element - this.elementRef.nativeElement - through the element reference injected in the constructor.
5️⃣: We apply a combination of the debounce and timer operators to enable us to emit a value from the source Observable only after a particular time span has passed without another source emission. It passes only the most recent value from each burst of emissions, and has the effect of only emitting search queries after the user stops typing. If wondering why we didn’t use debounceTime instead, please read this.
6️⃣: We apply the distinctUntilChanged operator which only emits when the current value is different from the last. This way, search queries not different from the last are dropped and not emitted. Note without the keySelector function passed in as the second argument, the distinctUntilChanged will not behave as we might expect it to. It will evaluate on the value reference. The Events that are emitted over fromEvent will always be a different reference so it won’t do anything. Thus, we pass in a keySelector function that takes in the current value and returns a key for use in comparing the current value to the previous value. In our case, we’ll be returning the text in the input box, event.target.value. Of course a compare function can be passed in instead as the first argument, which I tried but was not able to get it working as expected. If you’re able to, please do let me know you did it.
7️⃣: We make use of the takeUntil operator which emits values emitted the source Observable until a notifier Observable (destroy$) emits a value.
8️⃣: We call this.delayedInput.emit(e) to emit the delayed event.
9️⃣: Last but not the least, we call next() on the destroy$ Subject in ngOnDestroy to automatically unsubscribe the fromEvent subscription when the directive is destroyed.

Usage example

To use the directive, we have to import DelayedInputModule in AppModule.

@NgModule({
  // ...

  imports: [
    // ...

    DelayedInputModule,
  ],

  // ...
})
export class AppModule { }

Then update AppComponent to add a usage example. We start with app.component.html replacing it’s content as below.

<input type="text"
       placeholder="Search.."
       appDelayedInput
       (delayedInput)="search($event)"
       [delayTime]="600">

Followed by app.component.ts as below.

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.scss']
})
export class AppComponent {

  search($event: Event) {
	// Do something with the input value, maybe make an http request?

    /**
    * You need to explicitly tell TypeScript the type of the HTMLElement which is your target.
    * @see https://stackoverflow.com/a/42066698/6924437
    */
    console.log( ($event.target as HTMLInputElement).value );

  }

}

Special thanks to

for reviewing this post and providing valuable and much-appreciated feedback!
